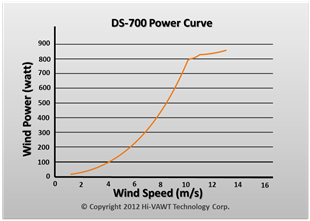

| General Information |
| P/N: | DS07-S000-00-1 | Rated Power: | 700W |
| Rated Wind Speed: | 12 m/s | Rated Speed: | 405 rpm |
| Cut-In Wind Speed: | <3 m | Cut-Out Wind Speed: | 15 m/s |
| Survival Wind Speed: | 60 m/s(3 seconde gust) |
| Dimension/Weight |
| Rotor Diameter: | 1.93m | Rotor Height: | 1.6 m |
| Mast Height(Not Included): | 3m (Min. recommended) | Total Height: | 4.6m (Min.) |
| Total Weight: | 60 Kgs | (Mast not included) |
| Rotor Specification |
| External Darrieus: | 3 Blades |
| Internal Savonius: | 2 Layers |
| Material of Blades: | Anodized Aluminum |
| Material of Axis: | Galvanized Steel SS400/Anodized Aluminum |
| Generator Specification |
| Generator Type: | AC, 3 Phase, Synchronism PMG |
| Rated Output: | 700W |
| Braking System |
| Automatic Braking: | Over speed short circuit braking system |
| Manual Braking: | 3-phase short-circuit manual brake switch(Added-on;Optional) |
| Operation Environment |
| Generator Temperature: | -20~40°C |
| Controller Temperature: | -10~40°C |
| Ambient Humidity: | 95% max. |
| Special Notes |
- Information and specification are subject to change without notice!
- The information provided is based on the use of our standard 4m mast, please consult your local certified engineer if you are going to install with the mast higher than 3m.
- Please follow your local regulations to install the DS-700 at proper location. Always consult your local certified civil engineer or structural engineer if you are planning to install the DS-700 on top of the roof.
| 2KW Grid Tied Wind Controller |
| Model: | 2KW Grid Tied Wind controller |
| Rated Output: | 2KW |
| Max. DC input voltage: | 500V DC |
| MPPT operation range | 30~400 V DC |
| Max. DC input current: | 10A DC |
| Grid voltage range: | 180~270 V AC(adjustable) |
| Grid frequency | 50/60 HZ |
| Operational phase | single phase |
| Output power factor | > 0.99 |
| Efficiency | > 0.97% |
| Display mode | LCD display |
| Protection Features | 1. DC reverse-polarity protection |
| 2. AC short circuit protection | |
| 3. islanding protection | |
| 4. temperature protection | |
| Power consumption | < 6W(standby mode) |
| Ingress protection | IP65 |
| Operational Temperature | -10~40℃ |
| Communication | RS-485 data port |
| Dimensions (L x W x H in mm): | 339x565x164 |
| Weight: | 11 Kgs |
| Regulatory conformity | EN62109-1 |
| EN62109-2 | |
| VDE0126-1-1 | |
| UL1741 |
| MAX-1000 Off Grid Wind Charger |
| Model: | MAX-1000 wind charger |
| Rated Output: | 48V DC |
| Input voltage | 0~450V DC(after rectifier) |
| Rated output current | 25A DC |
| Protection Features | 1. Battery over charge |
| 2.Reverse connection of battery | |
| 3.Current limitation of wind turbine | |
| 4.Power limitation | |
| 5.Unloading brake | |
| 6.Input lightning | |
| Power consumption | <2W(standby mode) |
| Communication | RS-485 |
| Display mode | LCD display |
| Operation Temperature | -10~+40℃ |
| Regulatory conformity | EN60950-1 |
| EN55022 | |
| EN61000-3-2 | |
| EN61000-3-3 | |
| EN55024 |
| DS-700 Off Grid Tied Wind Charge Controller |
| Model: | WD481000 |
| Rated Output: | 700 Watt |
| Max. Output: | 1000 Watt |
| Input: | 3 phase AC input |
| Voltage and Current range: | Special design to meet DS-700 Wind Generator operation range |
| Power Control: | With MPPT feature |
| Output: | Charge to 48Vdc Battery Bank with minimum 200Ah capacity |
| Max. charging current 20A | |
| Protection Features: | 1. Wind turbine over-speed protection |
| 2. Input over voltage protection | |
| 3. Battery over charge protection | |
| 4. Battery low voltage protection | |
| 5. Over temperature protection | |
| Power consumption: | 1 Watt ( Standby Model ) |
| LCD Display | |
| Communication: | RS-485 data port |
| Dimensions (L x W x H in mm): | 200 x 142 x 50 |
| Weight: | 12 Kgs |
